5.6-kW PM-SyRM, train current map, measured data

This example trains a GradNet current map for a four-pole 5.6-kW PM synchronous reluctance machine (Baldor ECS101M0H7EF4) from a measured dataset.

from pathlib import Path

import motulator.drive.gradnet as gn
import numpy as np
from motulator.drive import utils

from motulator_gradnet import (
    Squareplus,
    get_training_data,
    print_current_map_errors_meas,
    train_gradnet,
)

Compute base values based on the nominal values.

nom = utils.NominalValues(U=460, I=8.8, f=60, P=5.6e3, tau=29.7)
base = utils.BaseValues.from_nominal(nom, n_p=2)

Set up the paths and parameters.

p = Path(__file__).resolve().parent if "__file__" in globals() else Path.cwd()

dataset_path = p / "datasets/baldor_meas.npz"
trained_path = p / "trained_models/baldor_meas_curr_map_squareplus_d12_sub10.npz"
subsample = 10
activation = Squareplus

Train the model.

if not trained_path.exists():
    train_gradnet(
        dataset_path=dataset_path,
        base=base,
        save_model_path=trained_path,
        epochs=20000,
        subsample=subsample,
        embed_dim=12,
        activation=activation,
    )

Create the GradNet model and its callable.

model = gn.load_gradnet(trained_path)
current_map_fcn = gn.CurrentMap(model)

Load the dataset for comparison and split it into training and validation sets.

train_data, val_data = get_training_data(
    str(dataset_path), subsample=subsample, base=base
)

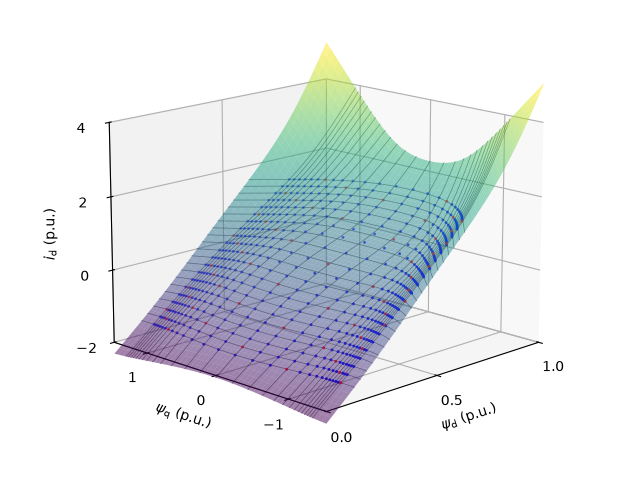

Plot the current map.

# Sample the map on a grid for plotting
current_map = current_map_fcn.as_magnetic_model(
    d_range=np.linspace(0 * base.psi, 1 * base.psi, 50),
    q_range=np.linspace(-1.5 * base.psi, 1.5 * base.psi, 50),
)

# Constant current contours corresponding to the measured dataset, for visualization
i_d_levels = np.arange(-20, 22, 2) / base.i
i_q_levels = np.arange(-26, 28, 2) / base.i
current_loci = (i_d_levels, i_q_levels)

utils.plot_map(
    current_map,
    "d",
    base,
    lims={"x": (0, 1), "y": (-1.5, 1.5), "z": (-2, 4)},
    ticks={"x": [0, 0.5, 1], "y": [-1, 0, 1], "z": [-2, 0, 2, 4]},
    raw_data=[val_data, train_data],
    current_loci=current_loci,
    axlim_clip=False,
)

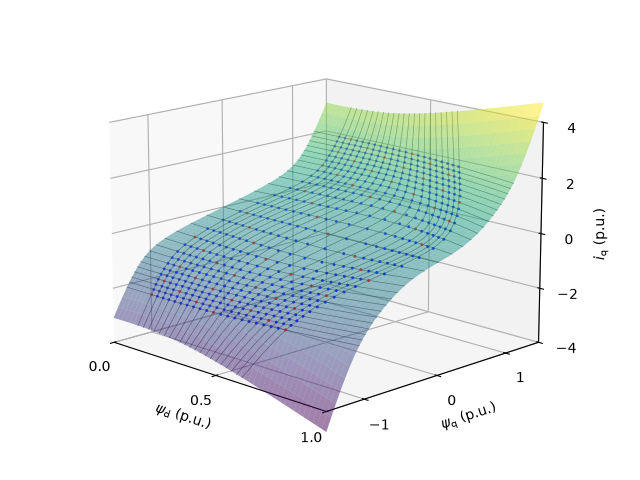

utils.plot_map(
    current_map,
    "q",
    base,
    lims={"x": (0, 1), "y": (-1.5, 1.5), "z": (-4, 4)},
    ticks={"x": [0, 0.5, 1], "y": [-1, 0, 1], "z": [-4, -2, 0, 2, 4]},
    raw_data=[val_data, train_data],
    current_loci=current_loci,
    axlim_clip=False,
)

•
•

Print statistical error metrics.

print_current_map_errors_meas(current_map_fcn, val_data, base=base)

Current-map error metrics: rmse=0.016 p.u., max=0.079 p.u., std=0.010 p.u.
