12.5-kVA, DO-GFM, output admittance

This example measures the output admittance of a 12.5-kVA disturbance-observer-based grid-forming (DO-GFM) converter. The converter and grid models are the same as in the example 12.5-kVA DO-GFM converter of motulator.

import numpy as np
from motulator.grid import control, model, utils

from motulator_impedance import grid

Compute base values based on the nominal values.

nom = utils.NominalValues(U=400, I=18, f=50, P=12.5e3)
base = utils.BaseValues.from_nominal(nom)

Configure the measurement.

meas_cfg = grid.MeasurementCfg(abs_u_e=0.01 * base.u, freqs=np.geomspace(1, 10e3, 100))

Configure the system model.

ac_filter = model.LFilter(L_f=0.15 * base.L, R_f=0.05 * base.Z, L_g=0.74 * base.L)
ac_source = model.ThreePhaseSource(w_g=base.w, e_g=base.u)
converter = model.VoltageSourceConverter(u_dc=650)
mdl = model.GridConverterSystem(converter, ac_filter, ac_source)

Configure the control system.

cfg = control.ObserverBasedGridFormingControllerCfg(
    i_max=1.3 * base.i,
    L=0.35 * base.L,
    R=0.05 * base.Z,
    R_a=0.2 * base.Z,
    u_nom=base.u,
    w_nom=base.w,
    T_s=1 / 10e3,
)
inner_ctrl = control.ObserverBasedGridFormingController(cfg)
ctrl = control.GridConverterControlSystem(inner_ctrl)

ctrl.set_power_ref(0.5 * base.p)
ctrl.set_ac_voltage_ref(base.u)

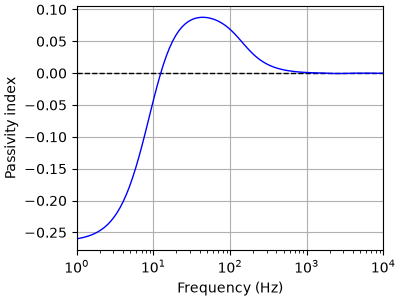

Measure the output admittance and plot the results.

if __name__ == "__main__":
    res = grid.measure_output_admittance(mdl, ctrl, meas_cfg)
    # To save the results, e.g., in MATLAB format:
    # from dataclasses import asdict
    # from scipy.io import savemat
    # savemat("do-gfm_admittance.mat", asdict(res))

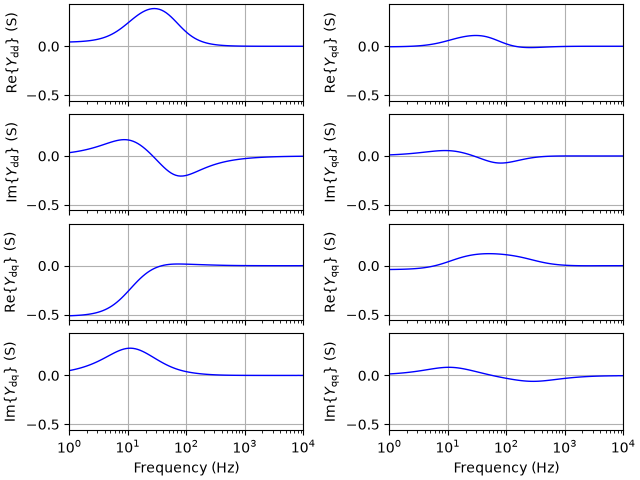

    grid.plot_output_admittance(res, form="re_im")

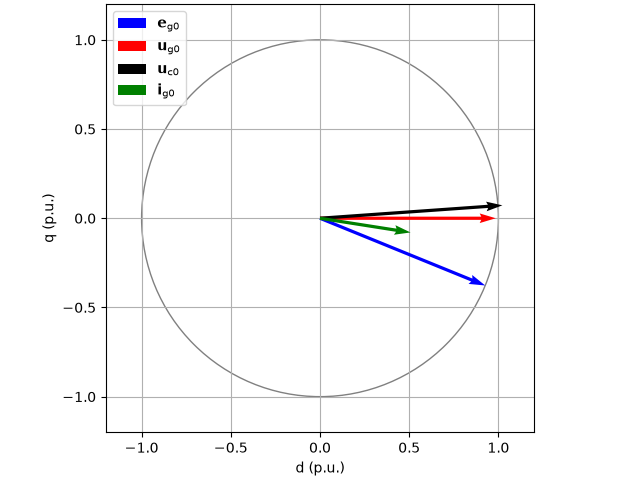

    grid.plot_operating_point(res, base)

•
•
•
