28-kW PM-SyRM, train current map, measured data

This example trains a GradNet current map for a 10-pole 28-kW PM synchronous reluctance machine (Brusa HSM1.10.18.04) from a measured dataset.

from pathlib import Path

import numpy as np

import motulator.drive.gradnet as gn
from motulator.drive import utils

Set nominal and base values, needed for figures only.

nom = utils.NominalValues(U=283, I=78, f=408, P=25e3, tau=49)
base = utils.BaseValues.from_nominal(nom, n_p=5)

Set up the paths and parameters.

p = Path(__file__).resolve().parent if "__file__" in globals() else Path.cwd()

dataset_path = p / "datasets/brusa_meas.npz"
trained_path = p / "trained_models/brusa_meas_curr_map_squareplus_d12_sub100.pth"
subsample = 100
activation = gn.Squareplus

Train the model.

if not trained_path.exists():
    gn.train_gradnet(
        dataset_path=dataset_path,
        base=base,
        save_model_path=trained_path,
        epochs=20000,
        subsample=subsample,
        embed_dim=12,
        activation=activation,
    )

Create the GradNet model and its callable.

model = gn.load_gradnet(trained_path, activation=activation)
current_map_fcn = gn.CurrentMap(model)

Load the dataset for comparison and split it into training and validation sets.

train_data, val_data = gn.get_training_data(
    str(dataset_path), subsample=subsample, base=base
)

Plot the current map.

# Sample the map on a grid for plotting
current_map = gn.sample_map_on_grid(
    current_map_fcn,
    map_type="current_map",
    d_range=np.linspace(-0.15 * base.psi, 1.05 * base.psi, 50),
    q_range=np.linspace(-1.05 * base.psi, 1.05 * base.psi, 50),
)

# Constant current contours corresponding to the measured dataset, for visualization
i_d_levels = np.arange(-145, 146, 5) / base.i
i_q_levels = np.arange(-145, 145, 5) / base.i
current_loci_levels = (i_d_levels, i_q_levels)

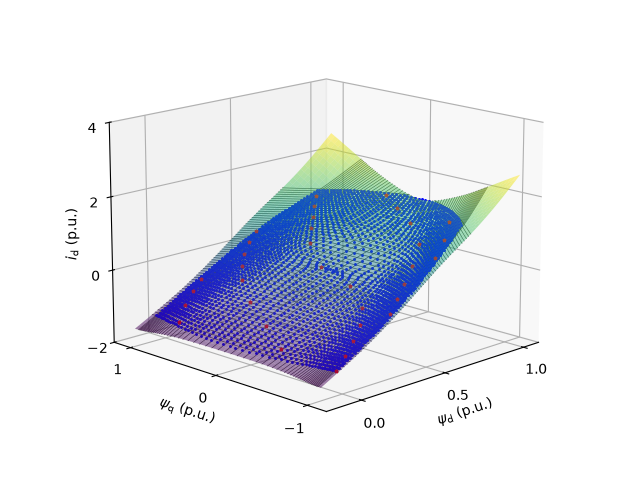

gn.plot_maps(
    current_map,
    "d",
    base,
    lims={"x": (-0.2, 1.1), "y": (-1.2, 1.2), "z": (-2, 4)},
    ticks={"x": [0, 0.5, 1], "y": [-1.0, 0, 1.0], "z": [-2, 0, 2, 4]},
    raw_data=[val_data, train_data],
    current_loci=True,
    current_loci_levels=current_loci_levels,
)

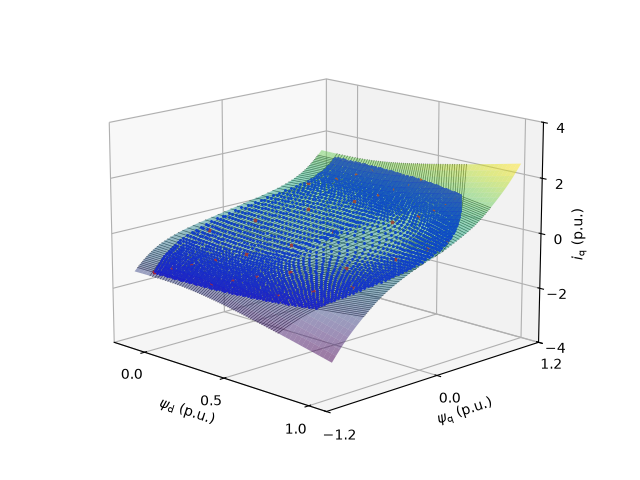

gn.plot_maps(
    current_map,
    "q",
    base,
    lims={"x": (-0.2, 1.1), "y": (-1.2, 1.2), "z": (-4, 4)},
    ticks={"x": [0, 0.5, 1], "y": [-1.2, 0, 1.2], "z": [-4, -2, 0, 2, 4]},
    raw_data=[val_data, train_data],
    current_loci=True,
    current_loci_levels=current_loci_levels,
)

•
•

Print statistical error metrics.

gn.print_current_map_errors_meas(current_map_fcn, val_data, base=base)

Current-map error metrics: rmse=0.032 p.u., max=0.133 p.u., std=0.019 p.u.
