This example simulates sensorless flux-vector control (FVC) of a 2.2-kW interior permanent-magnet synchronous machine (IPMSM) drive.

from math import pi

import motulator.drive.control.sm as control
from motulator.drive import model, utils

Compute base values based on the nominal values.

nom = utils.NominalValues(U=370, I=4.3, f=75, P=2.2e3, tau=14)
base = utils.BaseValues.from_nominal(nom, n_p=3)

Configure the system model.

Configure the control system.

est_par = par  # Assume accurate model parameter estimates
cfg = control.FluxVectorControllerCfg(i_s_max=1.5 * base.i, sensorless=True)
vector_ctrl = control.FluxVectorController(est_par, cfg)
speed_ctrl = control.SpeedController(J=0.015, alpha_s=2 * pi * 4)
ctrl = control.VectorControlSystem(vector_ctrl, speed_ctrl)

Set the speed reference and the external load torque.

ctrl.set_speed_ref(lambda t: (t > 0.2) * 2 * base.w_M)
mdl.mechanics.set_external_load_torque(lambda t: (t > 0.8) * 0.7 * nom.tau)

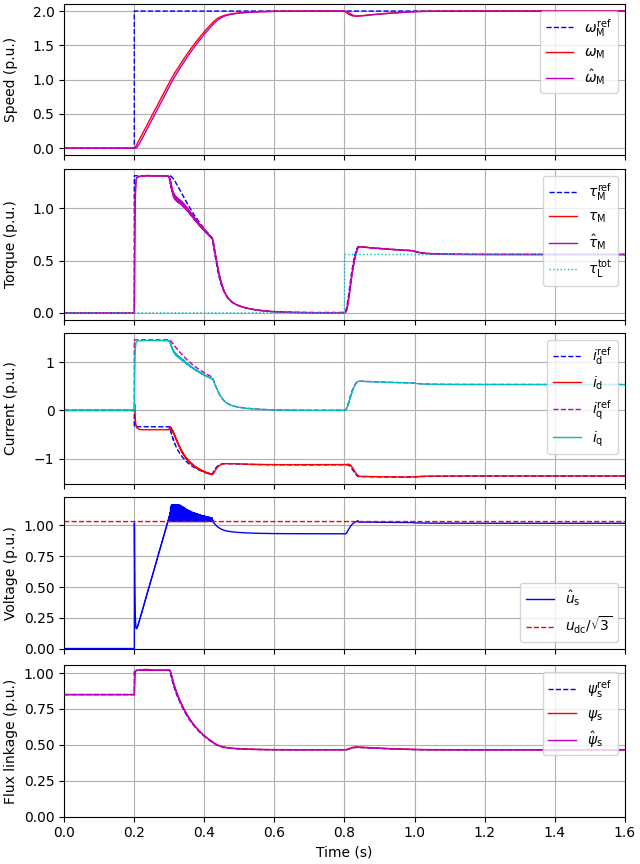

Create the simulation object, simulate, and plot the results in per-unit values.
