10-kVA, GFL

10-kVA, GFL#

This example simulates a 10-kVA grid-following (GFL) converter connected to an L filter and a strong grid. The control system includes a phase-locked loop (PLL) to synchronize with the grid, a current reference generator, and a PI-based current controller.

from motulator.grid import control, model, utils

Compute base values based on the nominal values.

nom = utils.NominalValues(U=400, I=14.5, f=50, P=10e3)
base = utils.BaseValues.from_nominal(nom)

Configure the system model.

Configure the control system.

Set the time-dependent reference and disturbance signals.

# Set the active and reactive power references
ctrl.set_power_ref(lambda t: (t > 0.02) * 5e3)
ctrl.set_reactive_power_ref(lambda t: (t > 0.04) * 4e3)

# Uncomment lines below to simulate an unbalanced fault (add negative sequence)
# from math import pi
# mdl.ac_source.e_g = 0.75 * base.u
# mdl.ac_source.e_g_neg = 0.25 * base.u
# mdl.ac_source.phi_neg = -pi / 3

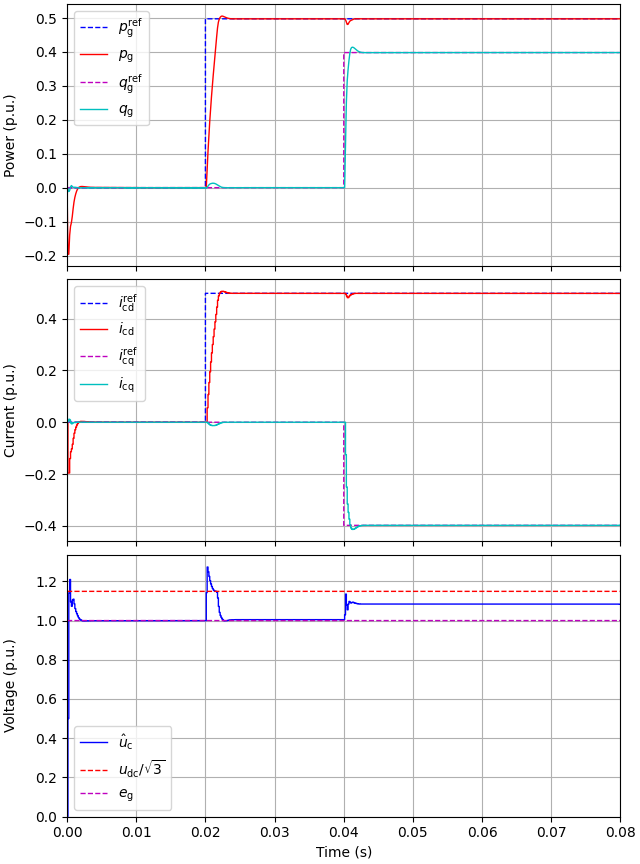

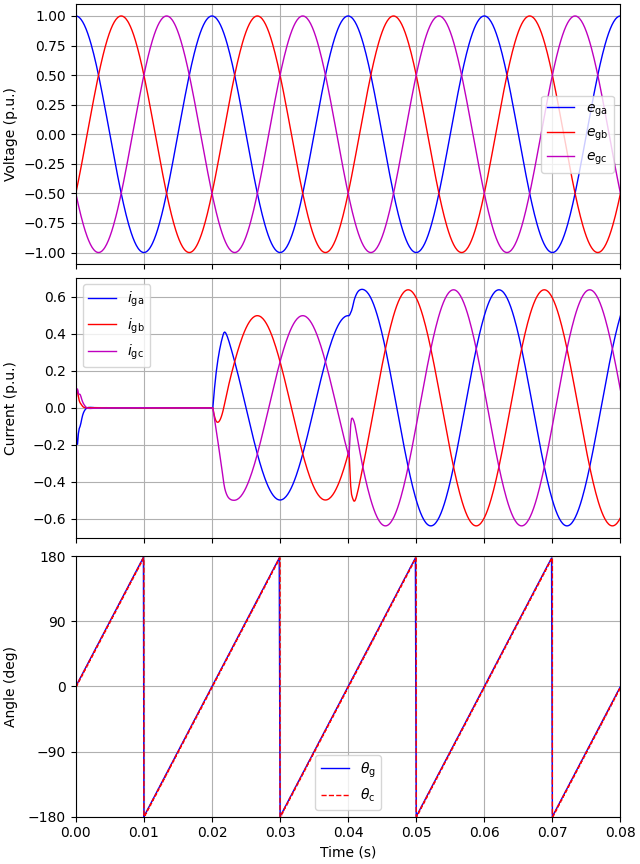

Create the simulation object, simulate, and plot the results in per-unit values.

  • plot 10kva gfl
  • plot 10kva gfl

Total running time of the script: (0 minutes 0.573 seconds)
