2.2-kW IPMSM, O-V/Hz control

2.2-kW IPMSM, O-V/Hz control#

This example simulates observer-based V/Hz (O-V/Hz) control of a 2.2-kW interior permanent-magnet synchronous machine (IPMSM) drive.

import numpy as np

import motulator.drive.control.sm as control
from motulator.drive import model, utils

Compute base values based on the nominal values.

nom = utils.NominalValues(U=370, I=4.3, f=75, P=2.2e3, tau=14)
base = utils.BaseValues.from_nominal(nom, n_p=3)

Configure the system model.

Configure the control system.

est_par = par  # Assume accurate model parameter estimates
cfg = control.ObserverBasedVHzControllerCfg(i_s_max=1.5 * base.i)
vhz_ctrl = control.ObserverBasedVHzController(est_par, cfg)
ctrl = control.VHzControlSystem(vhz_ctrl)

Set the speed reference and the external load torque.

t_stop = 8
times = np.array([0, 0.125, 0.25, 0.375, 0.5, 0.625, 0.75, 0.875, 1]) * t_stop
values = np.array([0, 0, 1, 1, 0, -1, -1, 0, 0]) * base.w_M
ctrl.set_speed_ref(utils.SequenceGenerator(times, values))

times = np.array([0, 0.125, 0.125, 0.875, 0.875, 1]) * t_stop
values = np.array([0, 0, 1, 1, 0, 0]) * nom.tau
mdl.mechanics.set_external_load_torque(utils.SequenceGenerator(times, values))

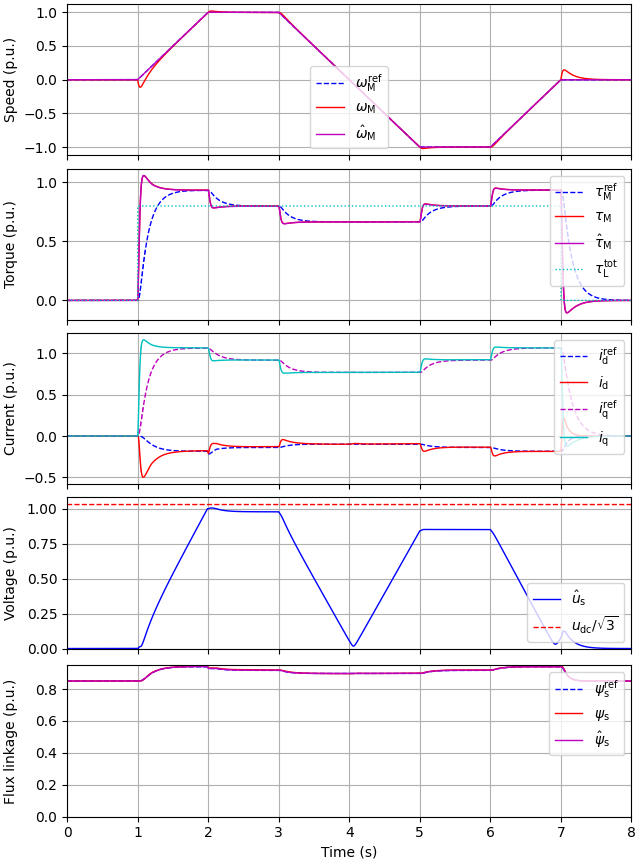

Create the simulation object, simulate, and plot the results in per-unit values.

plot 2kw ipmsm ovhz

Total running time of the script: (0 minutes 10.191 seconds)
