Grid Connection#

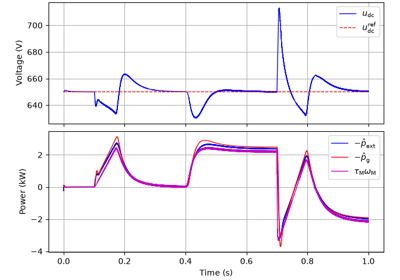

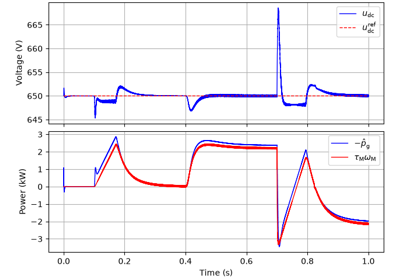

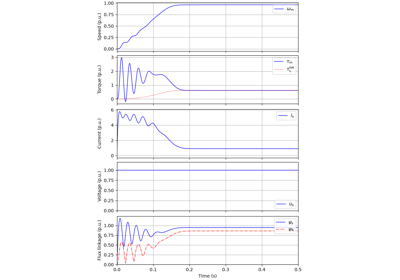

These examples demonstrate machines and drives connected to the grid. The example 2.2-kW IM, direct-on-line start simulates the direct-on-line start of an induction machine. In 2.2-kW IM, diode bridge, V/Hz control and 2.2-kW IPMSM, diode bridge, CVC, the drive is fed from a diode bridge. The examples 2.2-kW IPMSM, active front end, CVC and 2.2-kW IPMSM, dual-voltage-forming AFE, CVC include an active front end with grid-following and dual-voltage-forming control, respectively, each with two independent control systems.
